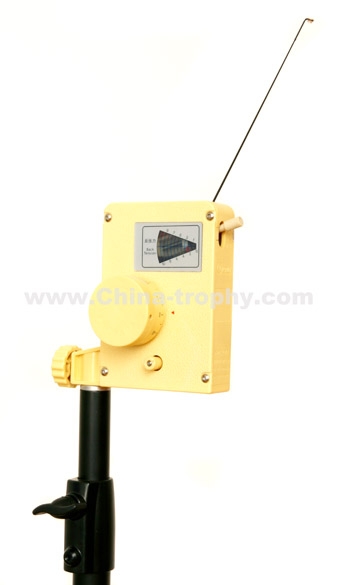

1.Mechanical Type Tensioner

　

Model wire Dia. Tension area
TC3S Φ0.02 --- Φ0.04 2.0g --- 11g
TCSS-X Φ0.03 --- Φ0.06 7.0g --- 30g
TCSS Φ0.04 --- 0.08 9.0g --- 50g
TCSS-Y Φ0.04 --- 0.08 9.0g --- 50g
TCSS-W Φ0.03 --- 0.08 6.0g --- 50g
TCS-E Φ0.06 --- 0.13 20g --- 130g
TCS Φ0.08 --- 0.16 40g --- 200g
TCS-V Φ0.08 --- 0.16 40g --- 200g
TCM Φ0.16 --- 0.25 90g --- 500g
TCM-V Φ0.16 --- 0.25 90g --- 500g
Big Tensioner   (TCL) -- Model and specification

Model
 wire Dia. Tension range
TCL Ø0.20 --- 0.60 200g --- 2000g
TCLL Ø0.50 — 1.20 1000g — 5000g

　

　

2.Electrical Type Tensioner

Servo Electrical Tensioner (ETCS) -- Model and specification
Model Wire dia Tension range
ETCS Φ0.02 --- Φ0.04 　

　

　

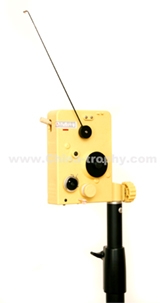

3. Magnetic Type Tensioner

Magnetic Tensioner (MTCS) --Model and specification

Model wire Dia. of reference (mm) Tension range (g)
MTCSS Ø0.03 --- Ø0.07 4 --- 40
MTCS Ø0.04 --- Ø0.14 7  --- 100
MTCM Ø0.06 --- Ø0.25 15 --- 430
MTCL Ø0.12—Ø0.40 50— 820
Note: Test condition is less 5M linear velocity.
