Tungsten Carbide Nozzle（TH Series） -- Introduction


    We select the imported tungsten carbon material, use special processing equipment to precision grind and polish, to make the bore outer diameter and attain Level 11 or above and Level 12 or above. "R" place attains Level 13 or above. The Priority: High Hardness, Anti-Impact. Extreme tip hardness, processed to 91 HRA, bore sizes from 0.3 mm and upwards, out diameters from 0.5 mm or upwards, there is a mirror finish in the tube tips a smooth bore.

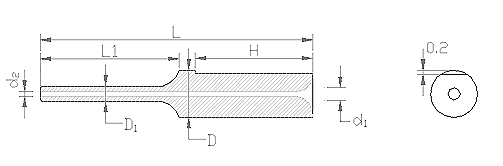

Tungsten Carbide Nozzle （TH Series） -- Illustration




Tungsten Carbide Nozzle （TH Series） -- Specification

TH 2 Series
No. Item Name Specification   （MM ）
L L1 D D1 d1 d2 H
1 TH2-001 W0435-2-1010 35 10 2 1.0 0.4 0.4 N/A
2 TH2-002 W0535-2-1210 35 10 2 1.2 0.5 0.5 N/A
3 TH2-003 W0435-2-1207 35 7 2 1.2 0.4 0.4 N/A
4 TH2-004 W0635-2-1210 35 10 2 1.2 0.6 0.6 N/A
5 TH2-005 W0435-2-1007 35 7 2 1.0 0.4 0.4 N/A
6 TH2-006 W0530-2-1210 30 10 2 1.2 0.5 0.5 N/A
7 TH2-007 W0330-2-0808 30 8 2 0.8 0.3 0.3 N/A
8 TH2-008 W0330-2-0607 30 7 2 0.6 0.3 0.3 N/A
9 TH2-009 W0435-2-1508 35 8 2 1.5 0.4 0.4 N/A
10 TH2-010 W0635-2-1510 35 10 2 1.5 0.6 0.6 N/A
11 TH2-011 W0335-2-0810 35 10 2 0.8 0.3 0.3 N/A
12 TH2-012 W0326-2-1007 26 7 2 1.0 0.3 0.3 N/A
13 TH2-013 W0430-2-1010 30 10 2 1.0 0.4 0.4 N/A
14 TH2-014 　W0530-2-1010 30 10 2 1.0 0.5 0.5 N/A
15 TH2-015 　W0430-2-1085 30 8.5 2 1.0 0.4 0.4 N/A
16 TH2-016 　W0735-2.5-1811 35 11 2.5 1.8 0.7 0.7 N/A
17 TH2-017 　W0835-2.5-2011 35 11 2.5 2.0 0.8 0.8 N/A
18 TH2-018 　W0330-2-1006 30 6 2.0 1.0 0.3 0.3 N/A
19 TH2-019 　W0635-2-1215 35 15 2.0 1.2 0.6 0.6 N/A



TH 3 Series
No. Item Name Specification   （MM ）
L L1 D D1 d1 d2 H
1 TH3-001 W0435-2-1010 30 7 3 1.0 0.3 0.3 N/A
2 TH3-002 W0430-3-1007  30 7 3 1.0 0.4 0.4 N/A
3 TH3-003 W0530-3-1010 30 10 3 1.0 0.5 0.5 N/A
4 TH3-004 W0630-3-1007 30 7 3 1.0 0.6 0.6 N/A
5 TH3-005 W0330-3-0807 30 7 3 0.8 0.3 0.3 N/A
6 TH3-006 W0630-3-1211 30 11 3 1.2 0.6 0.6 N/A
7 TH3-007 W0630-3-1309 30 9 3 1.3 0.6 0.6 N/A
8 TH3-008 W0630-3-1511 30 11 3 1.5 0.6 0.6 N/A
9 TH3-009 W0611-3-1506P 11 6 3 1.5 0.6 0.6 5
10 TH3-010  W0614-3-1509P 14 9 3 1.5 0.6 0.6 5
11 TH3-011 　W0814-3-1509P 14 9 3 1.5 1.0 1.0 5
12 TH3-012 　W1014-3-1509P 14 9 3 1.5 1.0 1.0 5
13 TH3-013 　W0414-3-1009P 14 9 3 1.0 0.4 0.4 5
14 TH3-014 　W1030-3 30 N/A 3 N/A 1.0 1.0 N/A
15 TH3-015 　W0326-3-0808 26 8 3 0.8 0.3 0.3 N/A
16 TH3-016 　W0330-3-081 30 10 3 0.8 0.3 0.3 N/A
17 TH3-017

W0330-3-060

 30 7 3 0.6 0.3 0.3 N/A
18 TH3-018 W03265-3-0811P 26.5 11 3 0.8 0.3 0.3 15
19 TH3-019 W0626-3-1208 26 8 3 1.2 0.6 0.6 N/A
20 TH3-020 　W1030-3-2014 30 14 3 2.0 1.0 1.0 N/A
21 TH3-021 W1230-3-2514　 30 14 3 2.5 1.2 1.2 N/A
22 TH3-022 　W0330-3-0707 30 7 3 0.7 0.3 0.3 N/A
23 TH3-023 W0330-3-0502 30 2 3 0.5 0.3 0.3 N/A
24 TH3-024 W0626-3-1208 26 8 3 1.2 0.6 0.6 N/A
25 TH3-025 　W0530-3-1210 30 10 3 1.2 0.5 0.5 N/A
26 TH3-026 　W0330-3-0504 30 4 3 0.5 0.3 0.3 N/A
27 TH3-027 W0825-3 25 N/A 3 N/A 0.8 0.8 N/A
28 TH3-028 W0435-1211　 35 11 3 1.2 0.4 0.4 N/A
29 TH3-029 W03535-3-0811 35 11 3 0.8 0.35 0.35 N/A
30 TH3-030 W0735-3-1411 35 11 3 1.4 0.7 0.7 N/A
31 TH3-031 W0430-3-0808 30 8 3 0.8 0.4 0.4 N/A
32 TH3-032 W1025-3-1608　 25 8 3 1.6 1.0 1.0 N/A
33 TH3-033 W0845-3-2017 45 17 3 2 0.8 0.8 N/A
34 TH3-034 　W1535-3 35 N/A 3 N/A 1.5 1.5 N/A
35 TH3-035 　W0535-3-1211 35 11 3 1.2 0.5 0.5 N/A
36 TH3-036 　W1036-3-2016 36 16 3 2.0 1.0 1.0 N/A
37 TH3-037 　W0630-3-1212 30 12 3 1.2 0.6 0.6 N/A
38 TH3-038 　W1022-3-2010 22 10 3 2.0 1.0 1.0 N/A



TH 4 Series
No. Item Name Specification   （MM ）
L L1 D D1 d1 d2 H
1 TH4-001 W0435-2-1010 30 15 4 2.0 0.8 0.8 N/A
2 TH4-002 　W1243-4-2515 43 15 4 2.5 1.2 1.2 N/A
3 TH4-003 　W1243-4-2515P 43 15 4 2.5 1.2 1.2 20
4 TH4-004 　W0843-4-2015P 43 15 4 2.0 0.8 0.8 20
5 TH4-005 　W1232-4.5 32 N/A 4.5 N/A 1.2 1.2 N/A
6 TH4-006 　W1543-4-2512P 43 12 4 2.5 1.5 1.5 20
7 TH4-007 　W0843-3.9-2019P 43 19 3.9 2.0 0.8 0.8 19
8 TH4-008 　W2020-5 20 N/A 5 N/A 2.0 2.0 N/A
