紅   寶  石  線  嘴


    本產品由不銹鋼本體以及紅寶石所構成,紅寶石有硬度高(可達HRA92)及磨擦系數低等優點.最小孔徑可達0.25mm,最小外徑為0.8mm.是您做精密繞線的最佳選擇.適用於超細線,FBT等產品上.



紅  寶  石  規  格  表

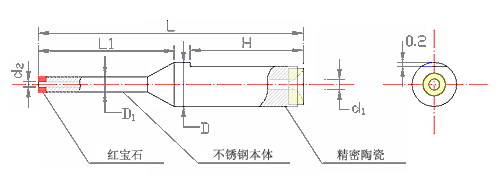

『说明』 L：总长 L1：小外径长度 D：大外径直径 D1：小外径直径 d1:出线口孔径 d2：入线口孔径 H：平面长度



R 2 系列
序號 編號 型號 規格 mm
L L1 D D1 d1 d2 H
1 R2-001 RC0326-2-1006 26 6 2 1.0 0.3 0.6 N/A
2 R2-002 RC0326-2-0806 26 6 2 0.8 0.3 0.6 N/A
3 R2-003 RC0330-2-0807 30 7 2 0.8 0.3 0.4 N/A
4 R2-004 RC0335-2-0810 35 10 2 0.8 0.3 0.4 N/A
5 R2-005 RC0535-2-1008 35 8 2 1.0 0.5 0.5 N/A
6 R2-006 RC0535-2.5-1411 35 11 2.5 1.4 0.5 0.8 N/A
7 R2-007 RC0336-2.5-1011 36 11 2.5 1.0 0.3 0.6 N/A
8 R2-008 RR0635-2-1610 35 10 2 1.6 0.6 0.8 N/A
9 R2-009 RS0535-2.5-1210 35 10 2.5 1.2 0.5 0.8 N/A
10 R2-010 RC0530-2-1208 30 8 2 1.2 0.5 0.6 N/A
11 R2-011 RS0830-2 30 N/A 2 2 0.8 0.8 N/A



R 3 系列
序號 編號 型號 規格 mm
L L1 D D1 d1 d2 H
1 R3-001 RC0330-3-1007 30 7 3 1.0 0.3 0.8 N/A
2 R3-002 RC0330-3-0807 30 7 3 0.8 0.3 0.6 N/A
3 R3-003 RC0430-3-1210 30 10 3 1.2 0.4 0.6 N/A
4 R3-004 RC0530-3-1311 30 11 3 1.3 0.5 0.8 N/A
5 R3-005 RC0630-3-1511 30 11 3 1.5 0.6 0.8 N/A
6 R3-006 RC0323-3-1007P 23 7 3 1.0 0.3 0.8 16
7 R3-007 RC0511-3-1506P 11 6 3 1.5 0.5 0.6 5
8 R3-008 RC0514-3-1509P 14 9 3 1.5 0.5 0.6 5
9 R3-009 RC0311-3-1006P 11 6 3 1.0 0.3 0.6 5
10 R3-010 RC0314-3-1009P 14 9 3 1.0 0.3 0.6 5
11 R3-011 RC0530-3-1455 30 5.5 3 1.4 0.5 0.6 N/A
12 R3-012 RC0530-3-1465 30 6.5 3 1.4 0.5 0.6 N/A
13 R3-013 RC0330-3-1535P 30 3.5 3 1.5 0.3 0.5 13
14 R3-014 RC0330-3-1012 30 12 3 1.0 0.3 0.6 N/A
15 R3-015 RS0821-3-2015P 21 15 3 2.0 0.8 1.0 6
16 R3-016 RC0615-3-1505 15 5 3 1.5 0.6 0.6 N/A
17 R3-017

RC0530-3-2014

30 14 3 2.0 0.5 0.5 N/A
18 R3-018 RC0426-3-1208 26 8 3 1.2 0.4 0.6 N/A
19 R3-019 RC0317-3-0812 17 12 3 0.8 0.3 0.4 N/A
20 R3-020 RC0414-3-1309 14 9 3 1.3 0.4 0.6 N/A
21 R3-021 RC0314-3-1015 14 1.5 3 1.0 0.3 0.6 N/A
22 R3-022 RR0314-3-1003 14 3 3 1.0 0.3 0.5 N/A
23 R3-023 RC03186-3-0805 18.6 5 3 0.8 0.3 0.4 N/A
24 R3-024 RC0334-3-1035P 34 3.5 3 1.0 0.3 0.6 8
25 R3-025 RC1030-3-2514 30 14 3 2.5 1.0 1.2 N/A
26 R3-026 RS0522-3-1608P 22 8 3 1.6 0.5 0.8 14
27 R3-027 RC0422-3-1208P 22 8 3 1.2 0.4 0.6 14
28 R3-028 RS1030-3-20145 30 14.5 3 2.0 1.0 1.2 N/A
29 R3-029 RS08115-3-2006P 11.5 6 3 2.0 0.8 1.1 5
30 R3-030 RS15115-3P 11.5 N/A 3 N/A 1.5 2.0 5.5
31 R3-031 RR08115-3-2055P 11.5 5.5 3 2.0 0.8 0.8 6
32 R3-032 RR08145-3-2085P 14.5 8.5 3 2 0.8 0.8 6
33 R3-033 RR10105-3 10.5 N/A 3 N/A 1.0 1.0 N/A
34 R3-034 RR1014-3 14 N/A 3 N/A 1.0 1.0 N/A
35 R3-035 RC1030-3-2013 30 13 3 2.0 1.0 1.0 N/A
36 R3-036 RC0825-3-2520 25 20 3 2.5 0.8 1.0 N/A
37 R3-037 RC0829-3-2015 29 15 3 2 0.8 1.2 N/A
38 R3-038 RS0626-3-1420 26 20 3 1.4 0.6 0.8 N/A
39 R3-039 RS0625-3-2520 25 20 3 2.5 0.6 0.8 N/A
40 R3-040 RC0430-3-1065 30 6.5 3 1.0 0.4 0.6 N/A
41 R3-041 RC0630-3-1465 30 6.5 3 1.4 0.6 0.8 N/A
42 R2-042 RC0545-3-1315 45 15 3 1.3 0.5 0.6 N/A
43 R3-043 RC0530-3-1006 30 6 3 1.0 0.5 0.8 N/A
44 R3-044 RC0630-3-1406 30 6 3 1.4 1.2 0.6 N/A



R 4 系列
序號 編號 型號 規格 mm
L L1 D D1 d1 d2 H
1 R4-001 RC0843-4-2014P 43 14 4 2.0 0.8 0.8 20
2 R4-002 RS0843-4-2014P 43 14 4 2.0 0.8 1.0 20
3 R4-003 RC0330-4-1515 30 15 4 1.5 0.3 0.6 N/A
4 R4-004 RC0330-4-1415 30 15 4 1.4 0.3 0.5 N/A
5 R4-005 RC0340-4-1006 40 6 4 1.0 0.3 0.6 N/A
6 R4-006 RC0330-4-1415 30 15 4 1.4 0.3 0.6 N/A
7 R4-007 RC1043-4-2514P 43 14 4 2.5 1.0 1.2 20
8 R4-008 RS1230-4-2515 30 15 4 2.5 1.2 1.5 N/A
9 R4-009 RC0343-4-1006 43 6 4 1.0 0.3 0.6 19
10 R4-010 RS08285-4-2015 28.5 15 4 2.0 0.8 1.2 N/A
11 R4-011 RS0643-4-1515 43 15 4 1.5 0.6 1.0 20
